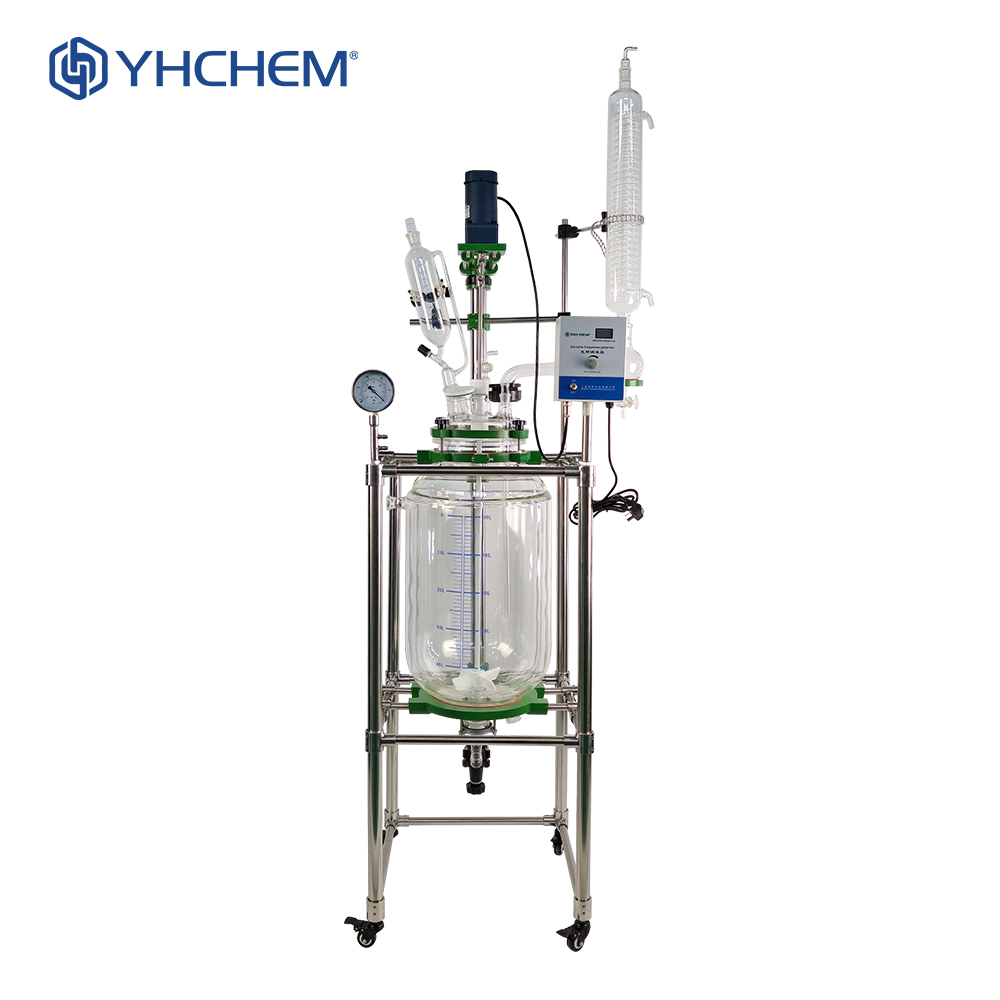

5l 10l 20l 30l Glass Reactor Chemical Batch Agitation Tank Reactor Prices

Product Description

Product Description

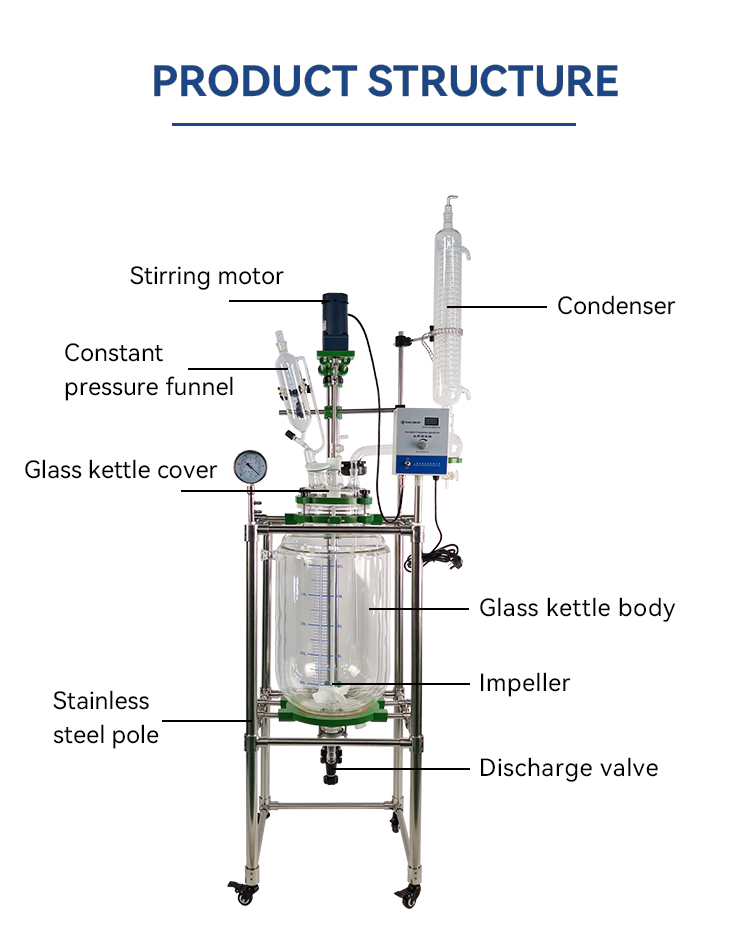

The glass reactor is an experimental equipment specifically designed for chemical reactions and mixing operations. By heating and cooling the temperature of the thermal conductive medium inside the jacket, the temperature required for material reaction in the kettle can be precisely controlled. In addition, the reactor also has various functions such as feeding, temperature measurement, and distillate recovery. We provide reaction vessels of different specifications, with capacities ranging from 500mL to 200L, and can be paired with vacuum pumps, high and low temperature equipment to form system devices. The glass reactors are widely used in fields such as petroleum, chemical, rubber, dyes, and food, meeting various experimental and production needs.

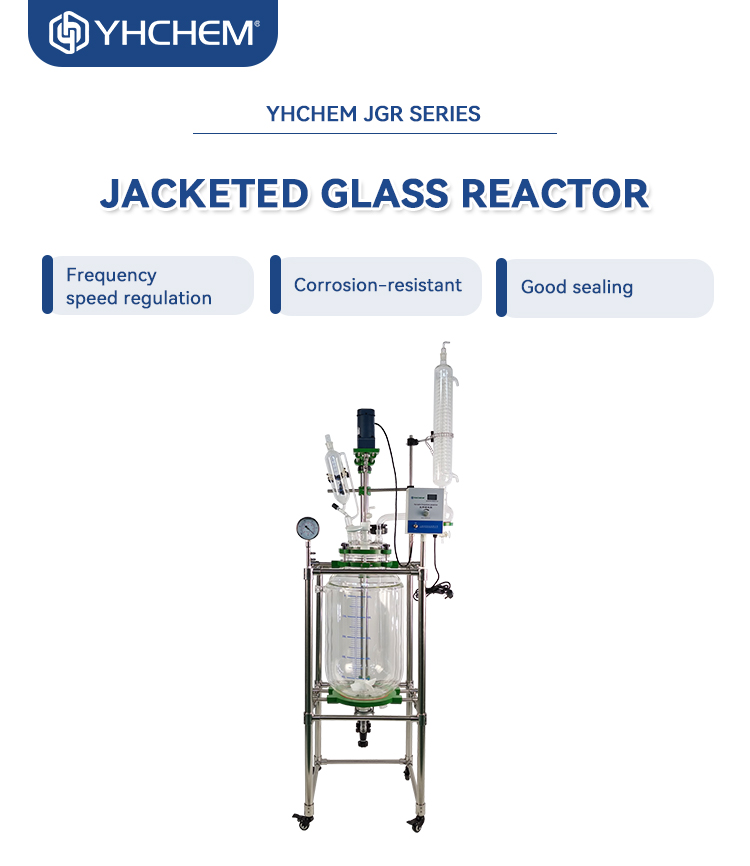

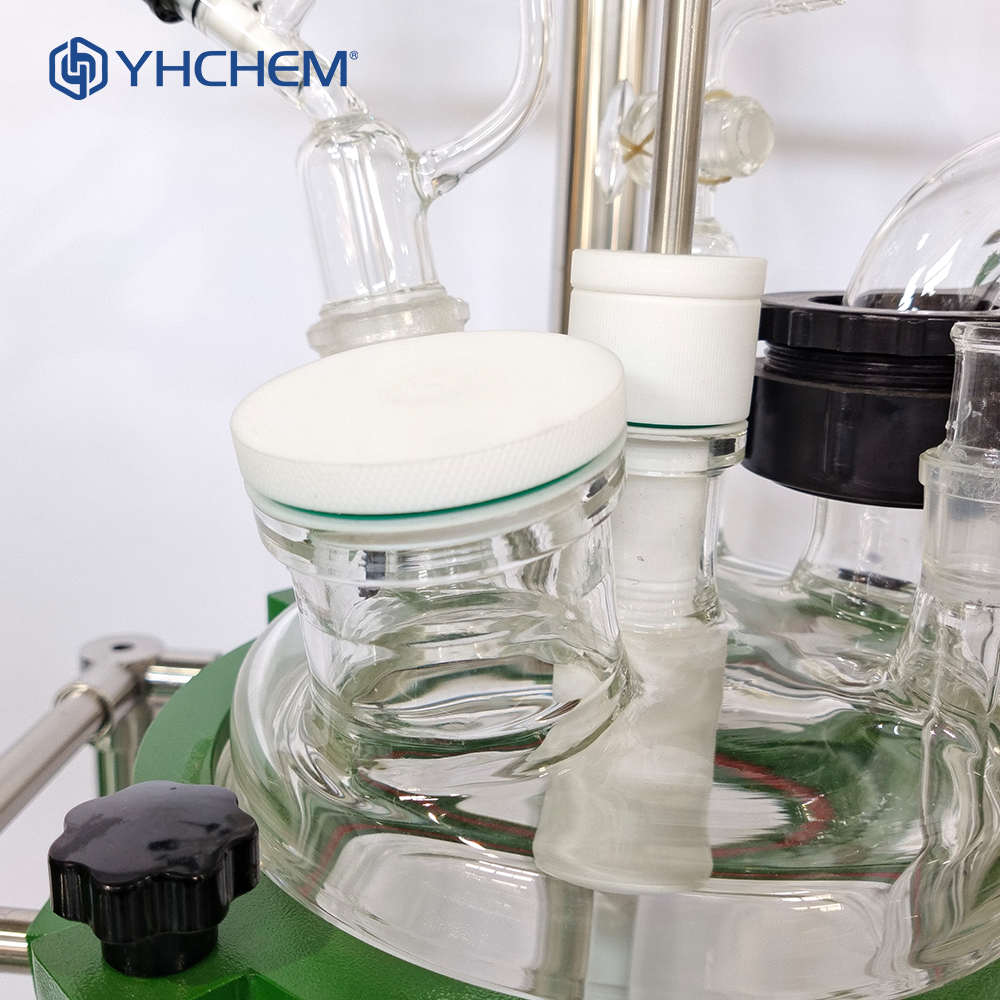

Glass Reactor Design
Glass Reactor Detail 1 Glass Reactor Detail 2 Glass Reactor Detail 3 Glass Reactor Detail 4 Glass Reactor Detail 5 Glass Reactor Detail 6 Glass Reactor Detail 7 Glass Reactor Detail 8 Glass Reactor Detail 9 Glass Reactor Detail 10

Product Parameter

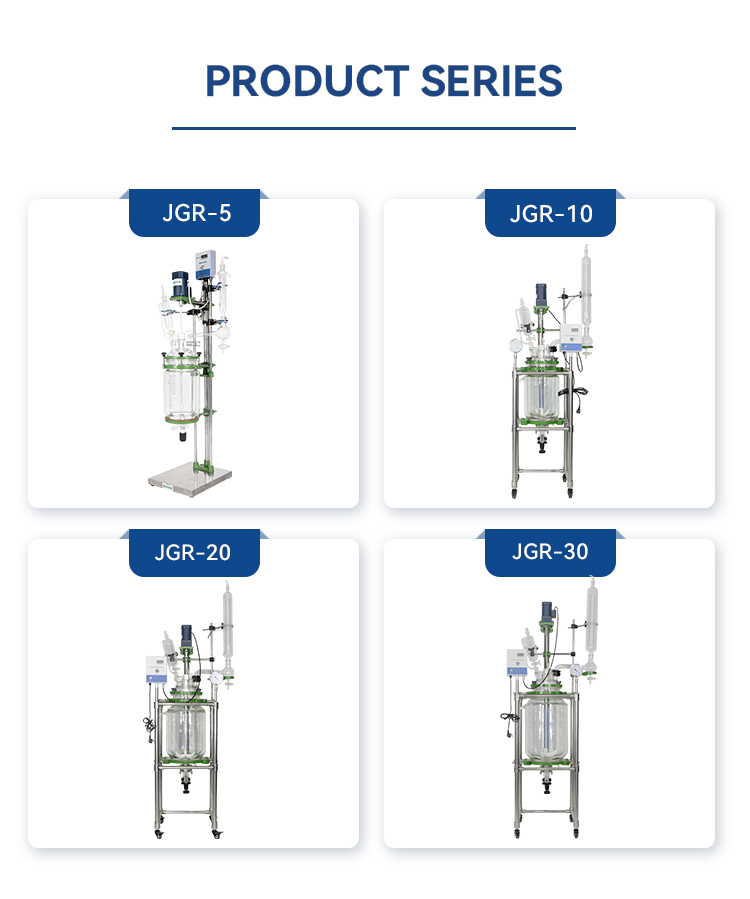

Model JGR-10 JGR-20 JGR-30 JGR-50 JGR-100 JGR-200
Kettle volume (L) 10 20 30 50 100 200
Jacket Volume(L) 5 6 10 13 30 60
Condenser Area(m²) 0.2 0.3 0.4 0.6

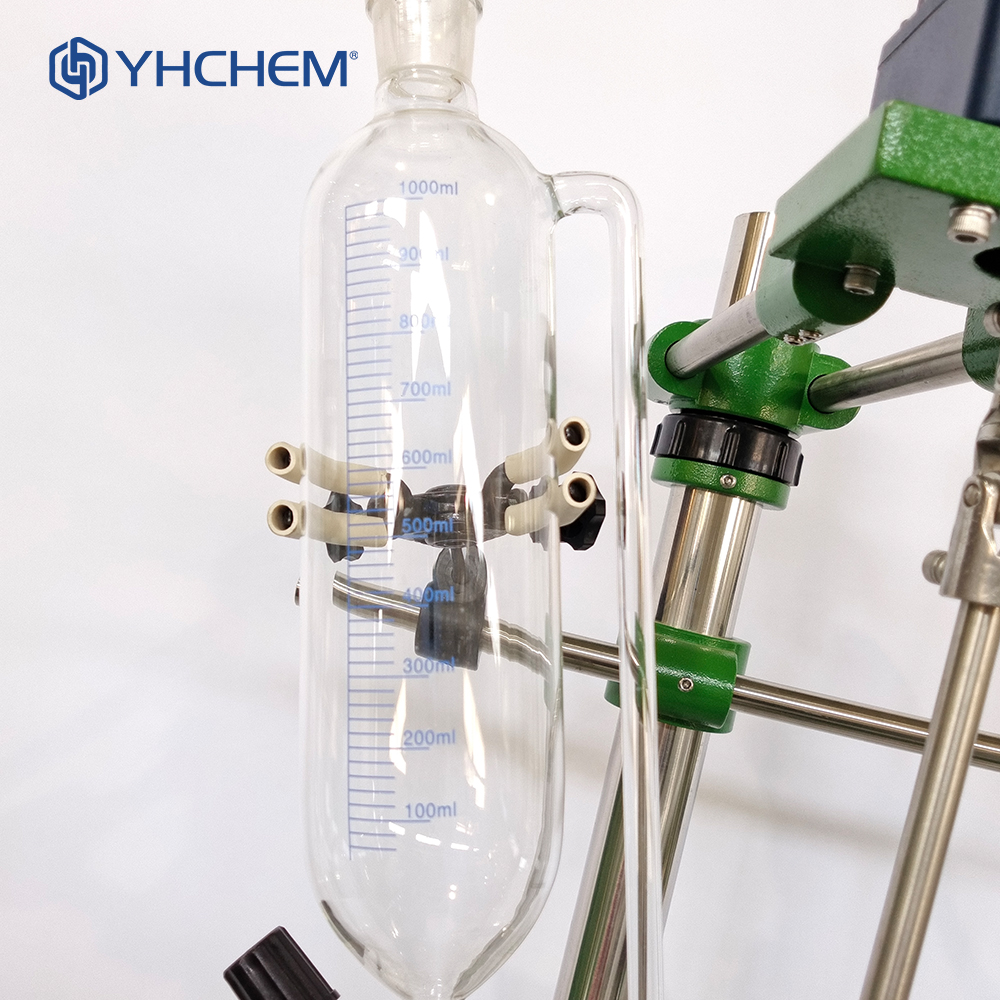

Dropping Funnel Volume(L) 1 2
Receiving Flask Volume (L) 0.5 1
Glass Material High borosilicate 3.3
Frame Material SUS304
Working Temperature Range (℃) -80~200
Reactor pressure (Mpa) -0.1~0.0
Jacketed pressure (Mpa) ≤±0.03
Jacketed pressure (Mpa) 0~450
Sealing Parts Material Fluororubber
Power Supply 220V50Hz, 1P
Reactor Dimensions Chart

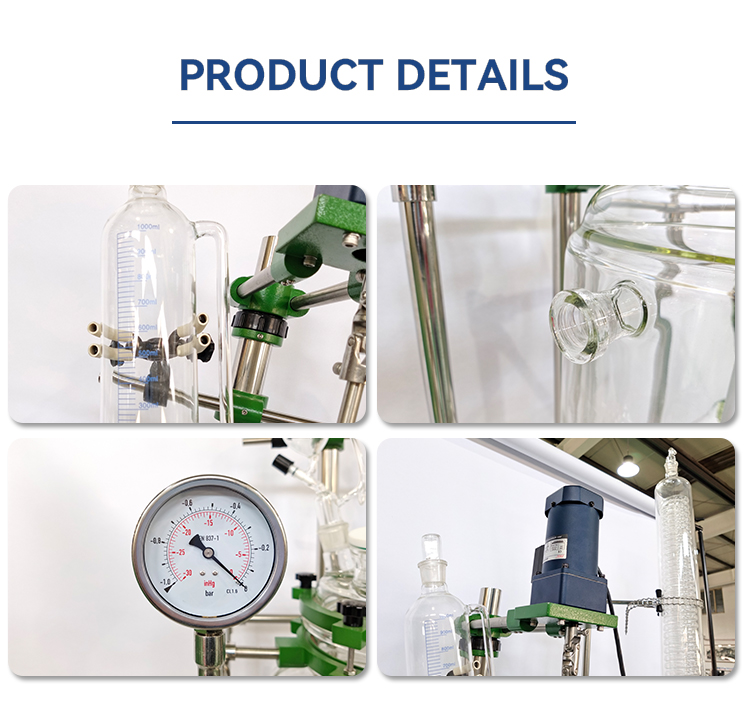

Detailed Configurations

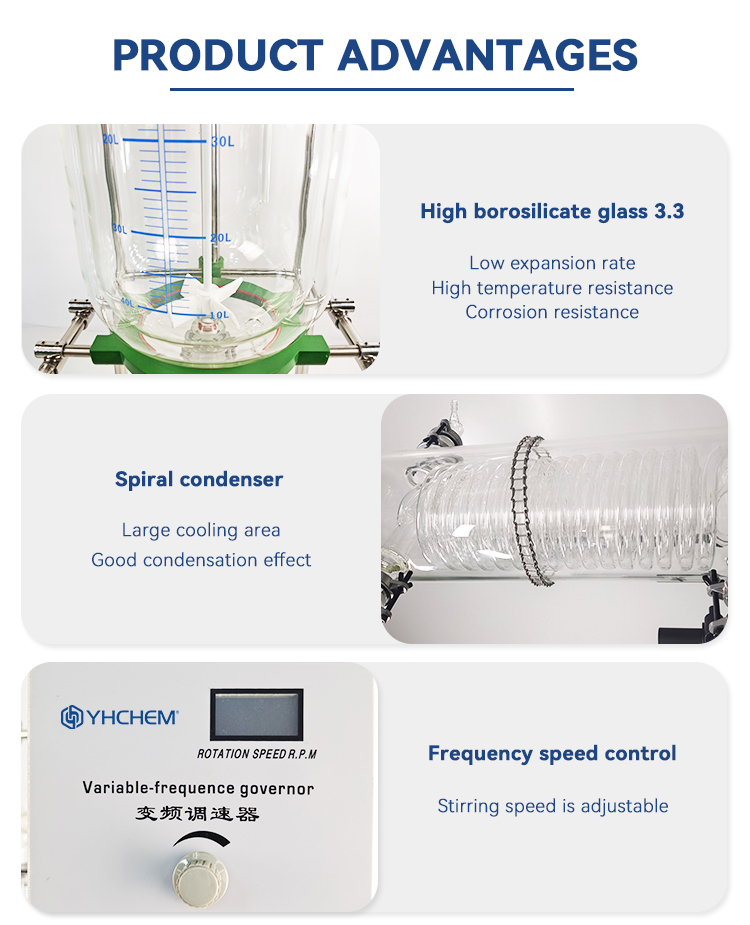

Detail Configuration 1

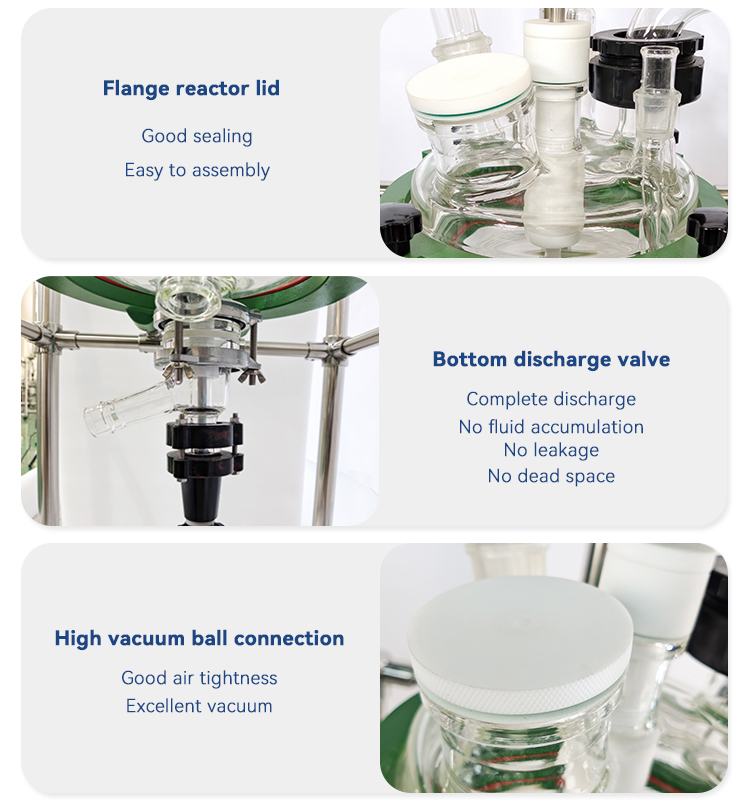

Detail Configuration 2
Detail Configuration 3
Detail Configuration 4
Detail Configuration 5
Detail Configuration 6

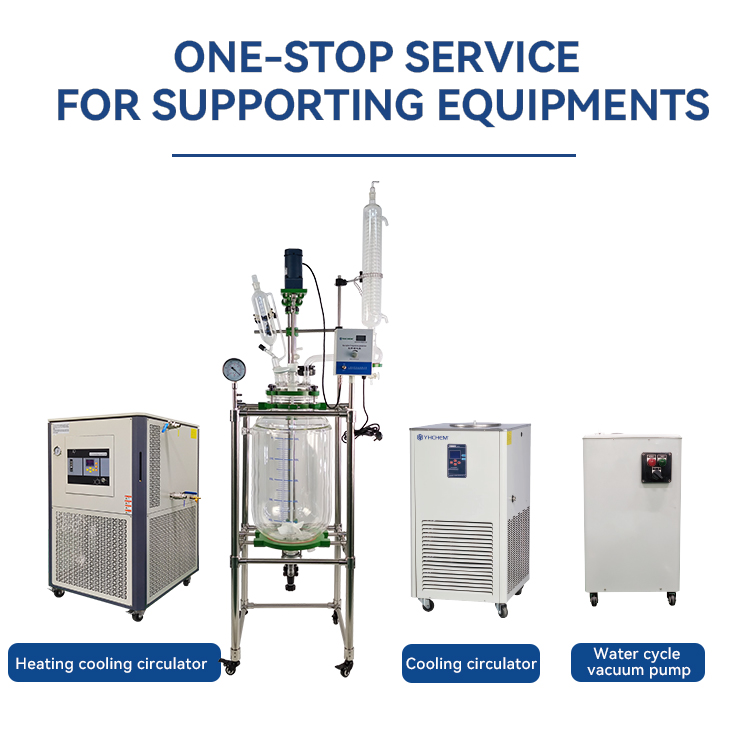

System Configuration Layout
Configuration Schematic 1
Configuration Schematic 2

Frequently Asked Questions

Q

What are the scale and capabilities of your factory?

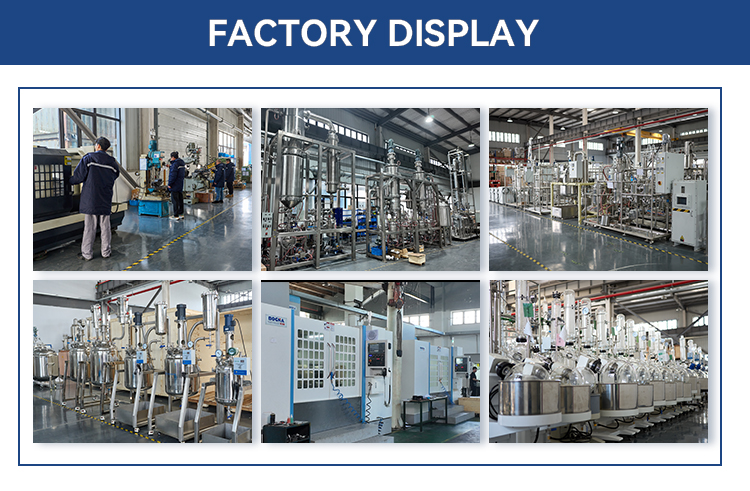

Our factory features a facility spanning over 3,700 square meters and a dedicated team of more than 100 employees, ensuring robust production and strict quality control.

Q

What is the ordering process?

The standard ordering process is as follows:
  1. Communicate your requirements with our sales team
  2. Receive tailored solutions and quotations
  3. Sign the contract
  4. Make the payment
  5. Begin production
  6. Deliver the goods
Q

What shipping methods do you offer?

We offer flexible shipping options to meet customer needs, including land, air, and sea transportation.

Q

What quality assurance do you provide?

We provide a one-year warranty period to ensure the quality and reliable performance of our products.

Q

Do you offer customization services?

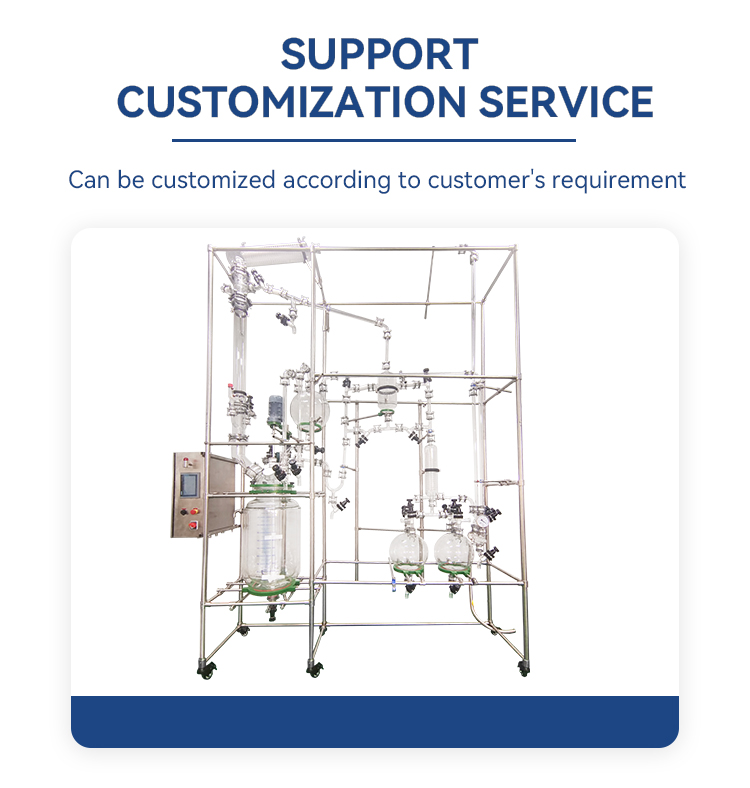

Yes, we offer customized product development and process solutions tailored to your specific technical requirements.

Q

Where should I go for additional questions?

Feel free to reach out with any additional questions or concerns! We are ready to assist you.
